Setting up Tracking using Google Tag Manager

Google Tag Manager (GTM) is one of the most common ways to install CustomerLabs and manage event tracking. By using GTM, you can deploy the tracking code and capture events without making direct changes to your website’s source code.

---

Prerequisites

• Edit and Publish access to Google Tag Manager container that is installed on the website
• Active CustomerLabs account

Installing the Tracking Code

To get started, you need to create a new tag in GTM to load the CustomerLabs library.

Setting up the Tag

1. Log in to your Google Tag Manager container.
2. Go to Tags and click New.

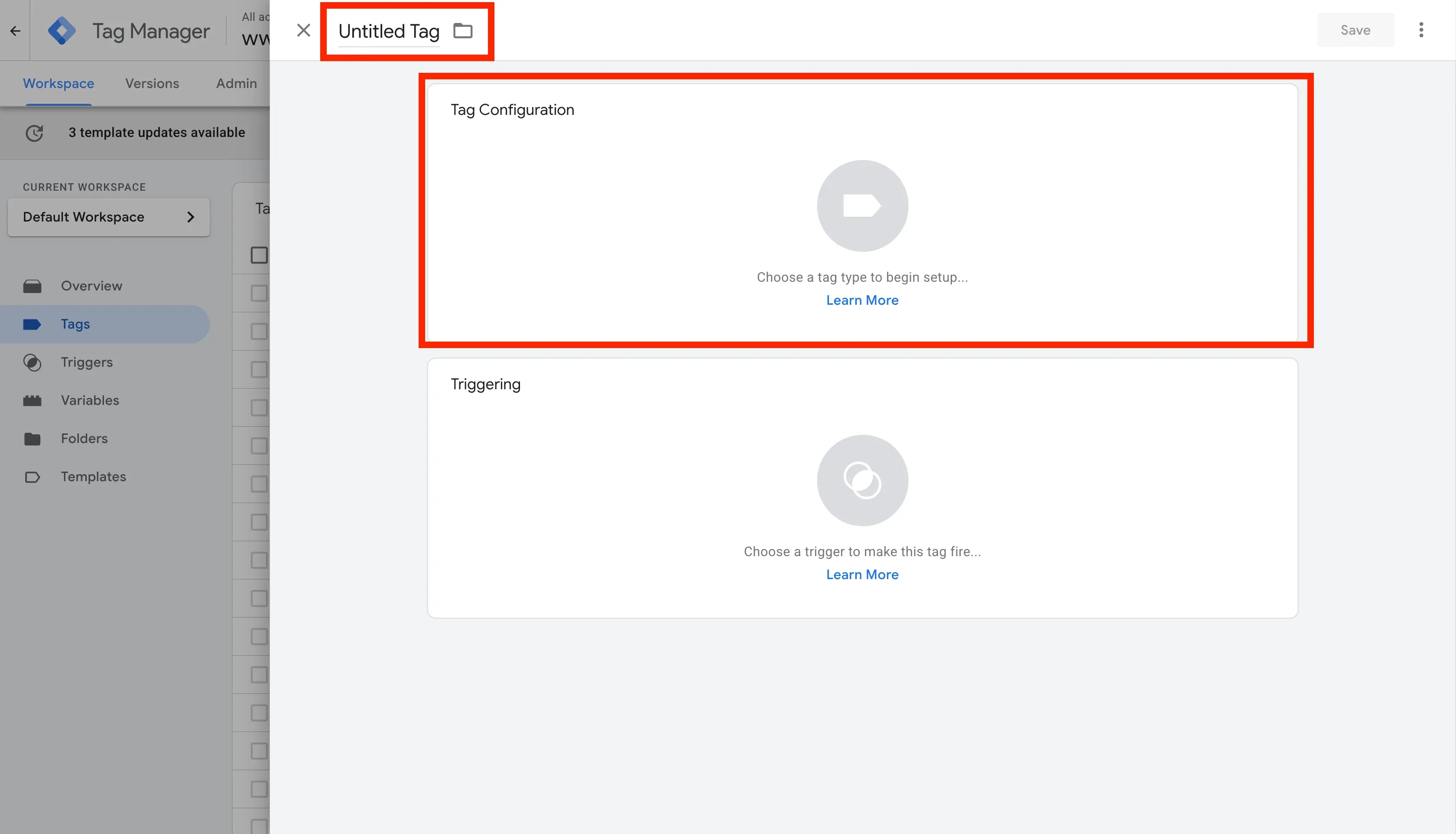

3. Name the tag (e.g., CL - Tracking Code).

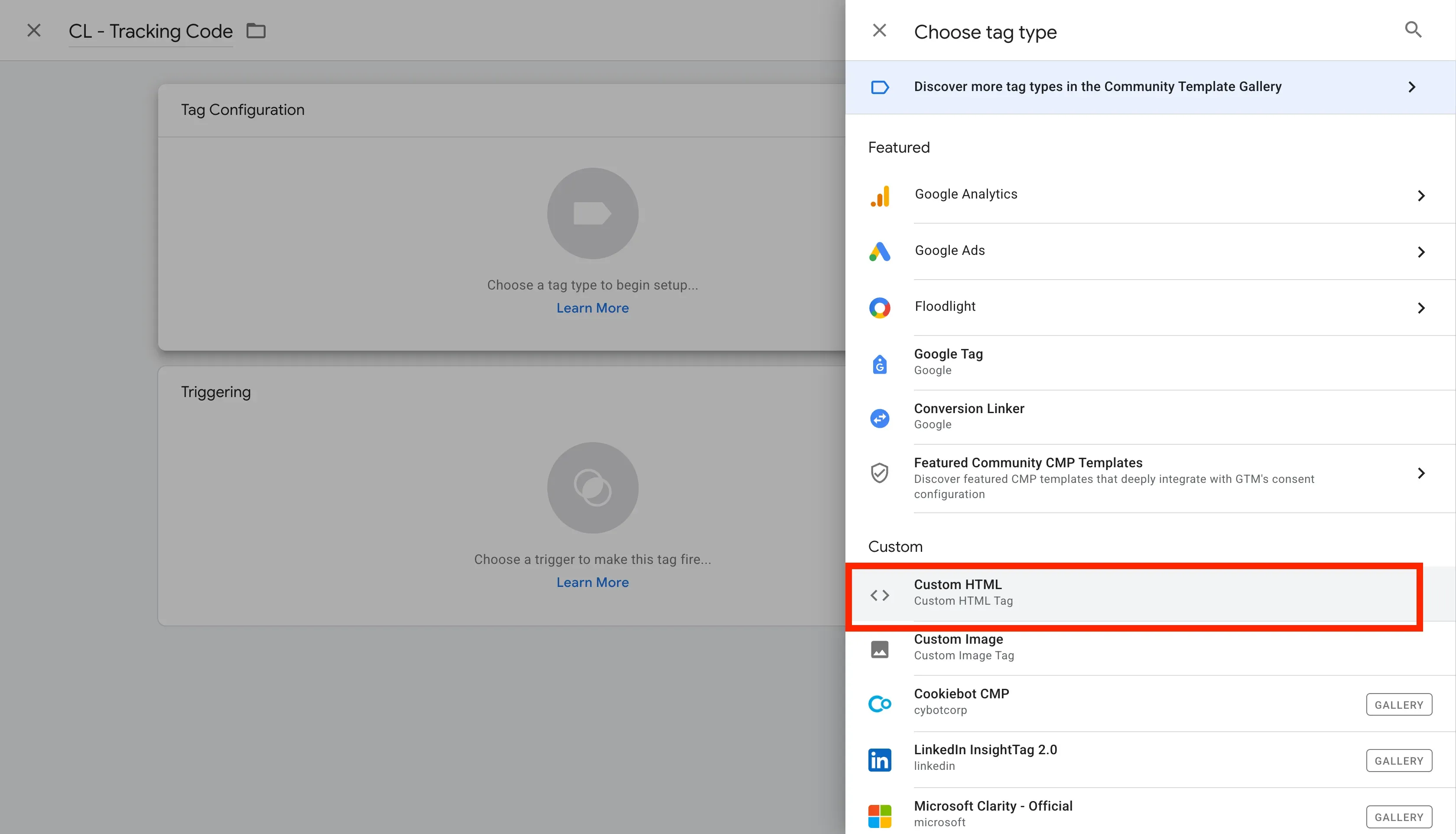

4. Select Custom HTML as the Tag Type.

5. Login to CustomerLabs and go to Home → Connect Website. Copy the Tracking Code.

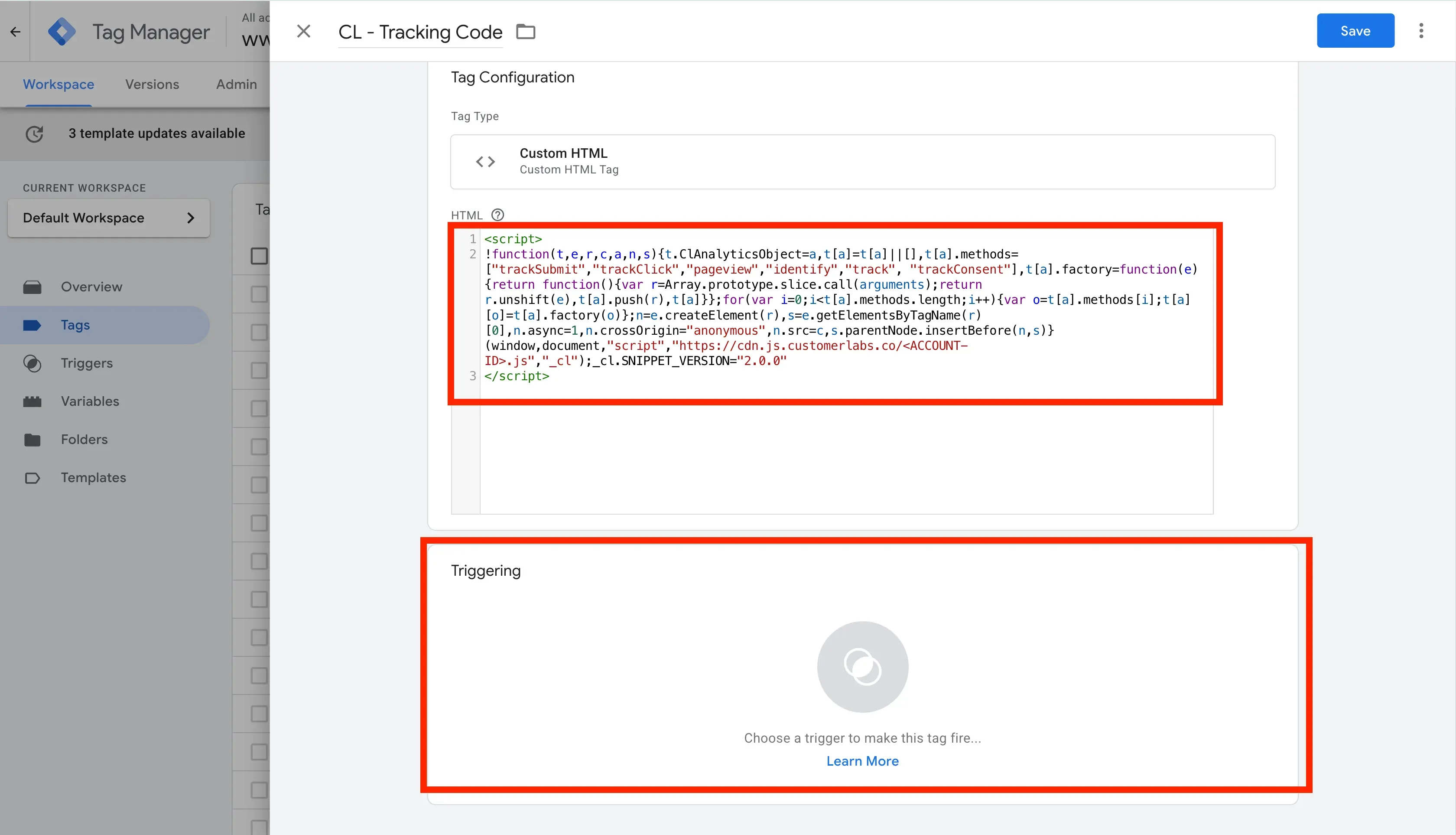

6. Paste your CustomerLabs tracking code into the HTML text box and Click on the Triggering section.

Tip

If you have 1P Domain Tracking enabled, use the code from the 1P Domain Tracking Code tab.

Setting up the trigger

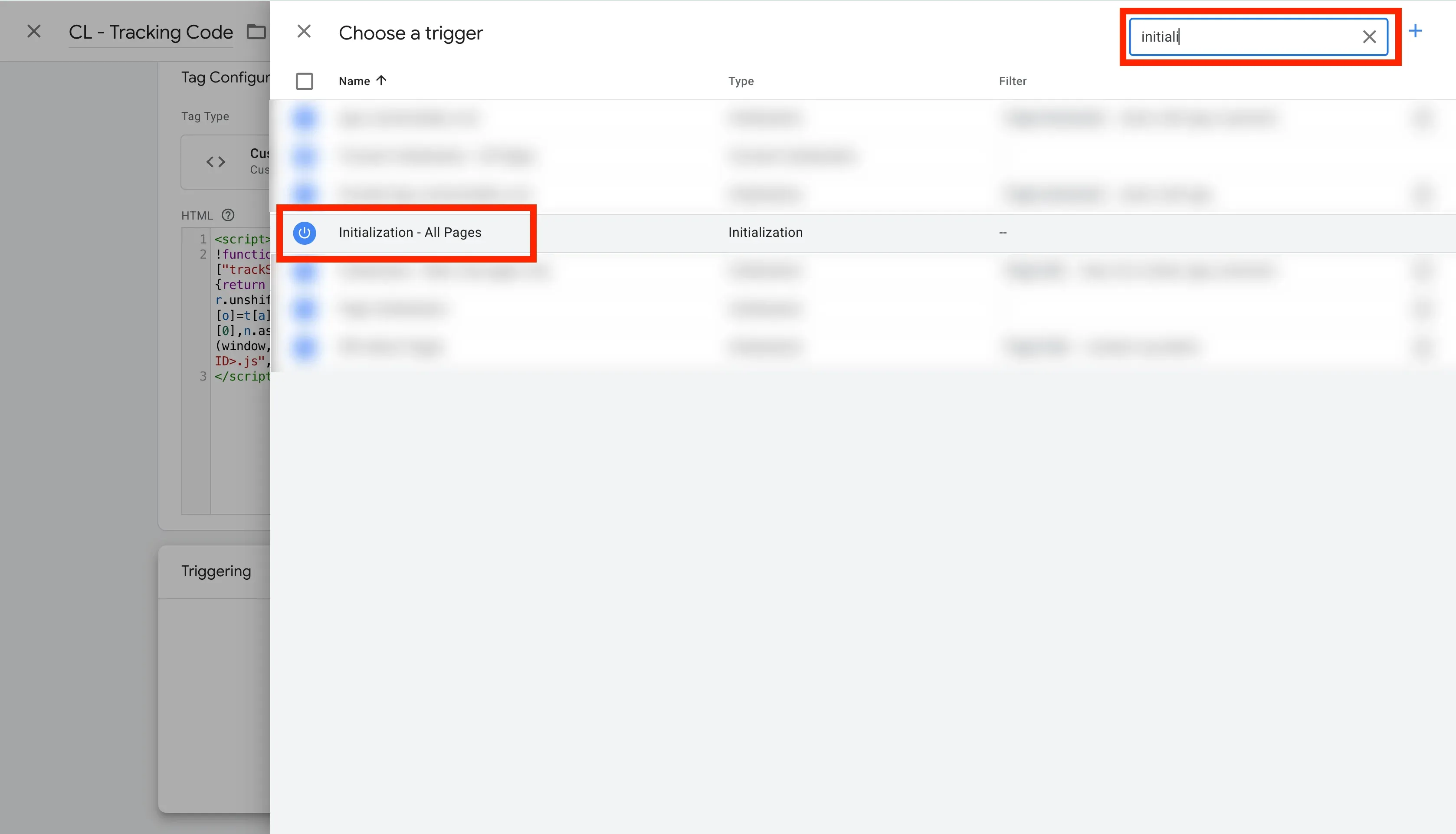

6. Under Triggering, select Initialization - All Pages.

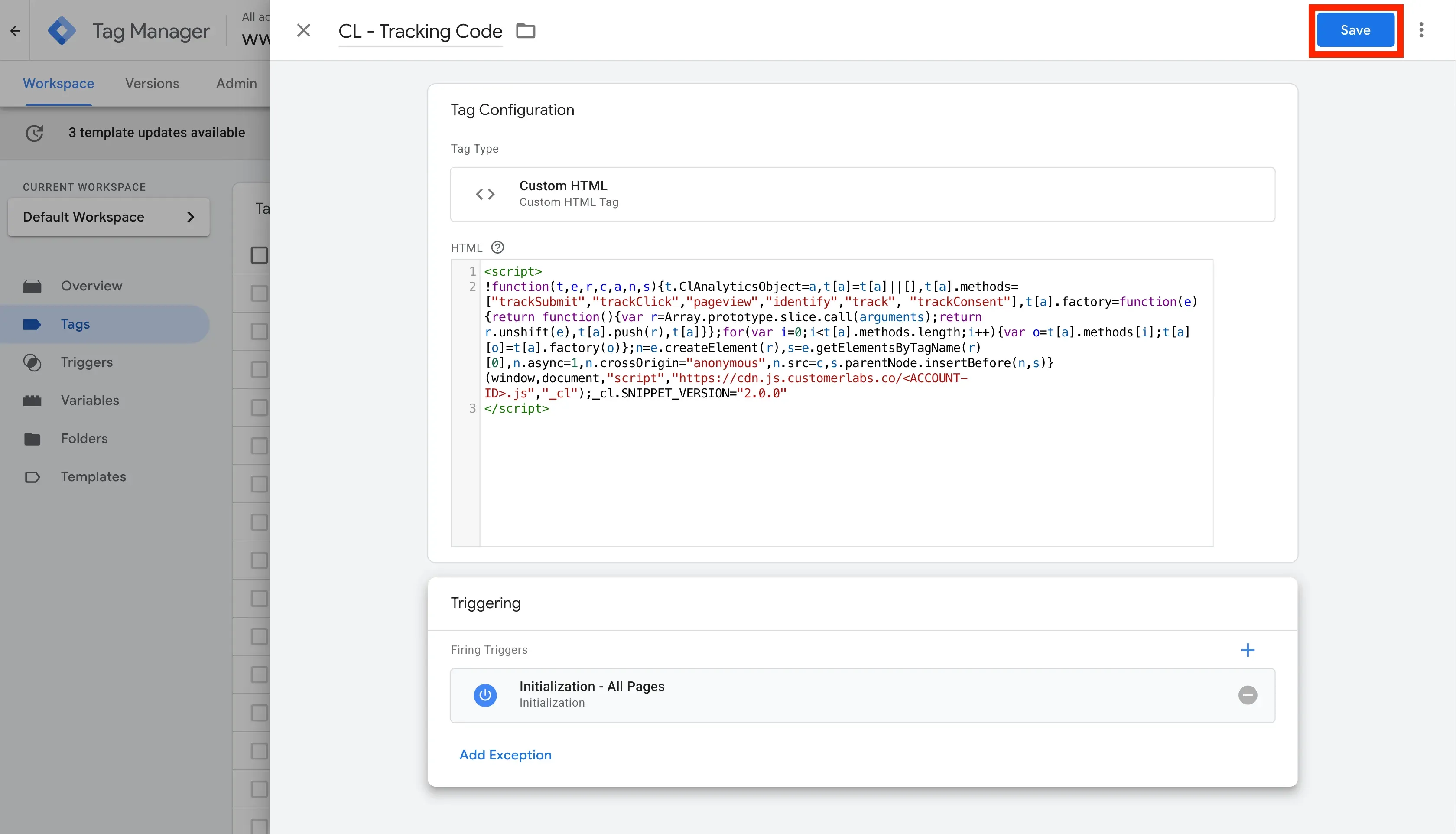

7. Click Save.

---

Tracking Events via GTM

Prerequisites

• Edit and Publish access to Google Tag Manager container that is installed on the website
• Active CustomerLabs account
• CustomerLabs Tracking code is already installed on the website
• Data Layer is already implemented on the website and events are pushed

Data Layer

A data layer is a JavaScript object on a website that acts as a structured, centralized container for passing visitor interaction data to tracking and analytics tools. It acts as an intermediary, enabling tracking without altering the website code. It provides rich context for events, such as passing purchase totals, product names, or user IDs alongside the event itself.

Once the CustomerLabs tracking code is installed, you can track user actions (like form submissions or purchases) by firing Custom HTML tags in GTM. These tags typically trigger when specific data is pushed into the website’s dataLayer.

Important Instructions

1. The dataLayer event name should be same as the custom event name in the GTM trigger.

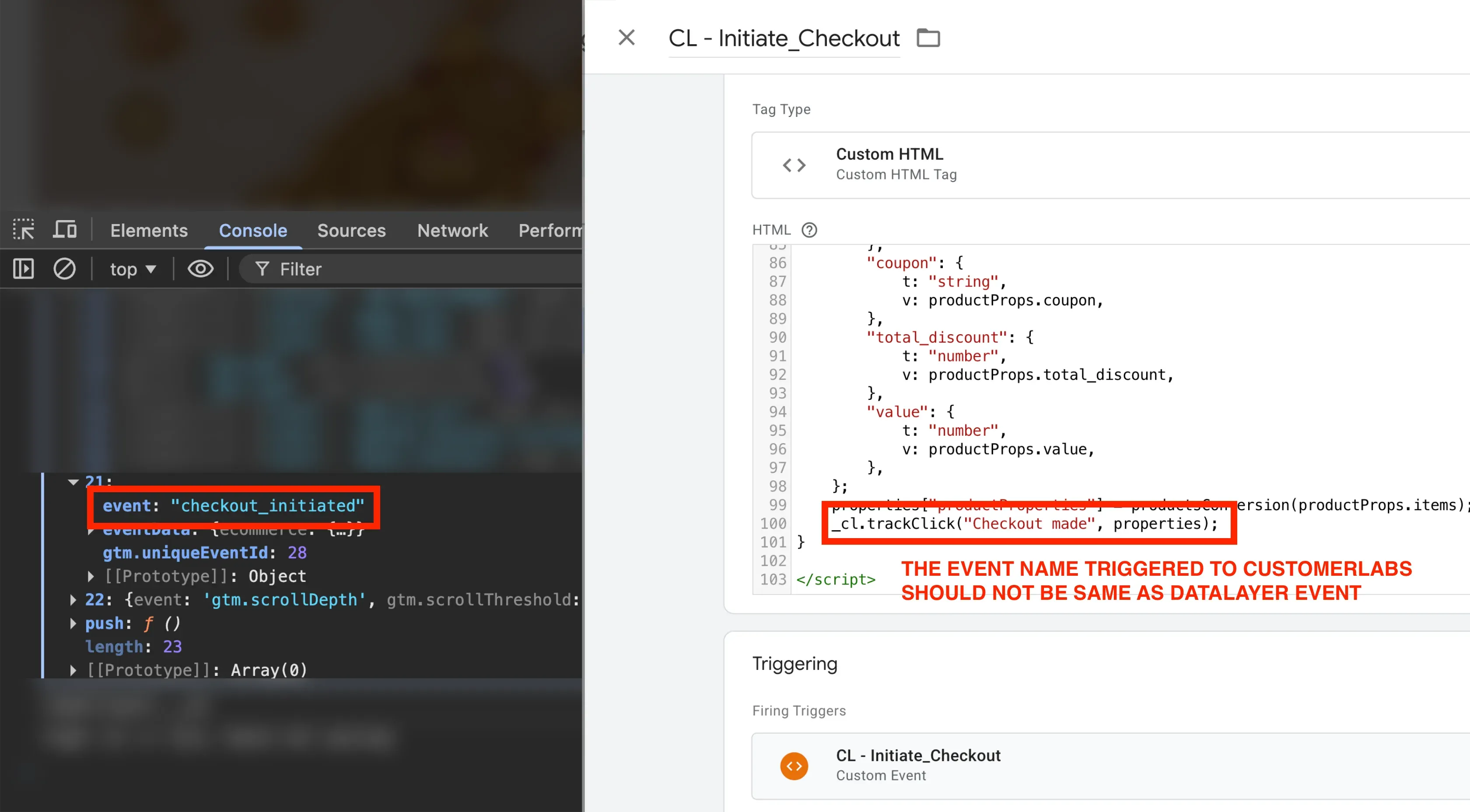

2. The dataLayer event name should NOT be same as the the event name triggered to CustomerLabs. If same name is used, then it will start an infinite loop of event trigger.

3. The dataLayer push sending events to other platforms should not be used to trigger the GTM tag.

Important

If the dataLayer payload contains send_to, it means it is sending events to other platforms

Note

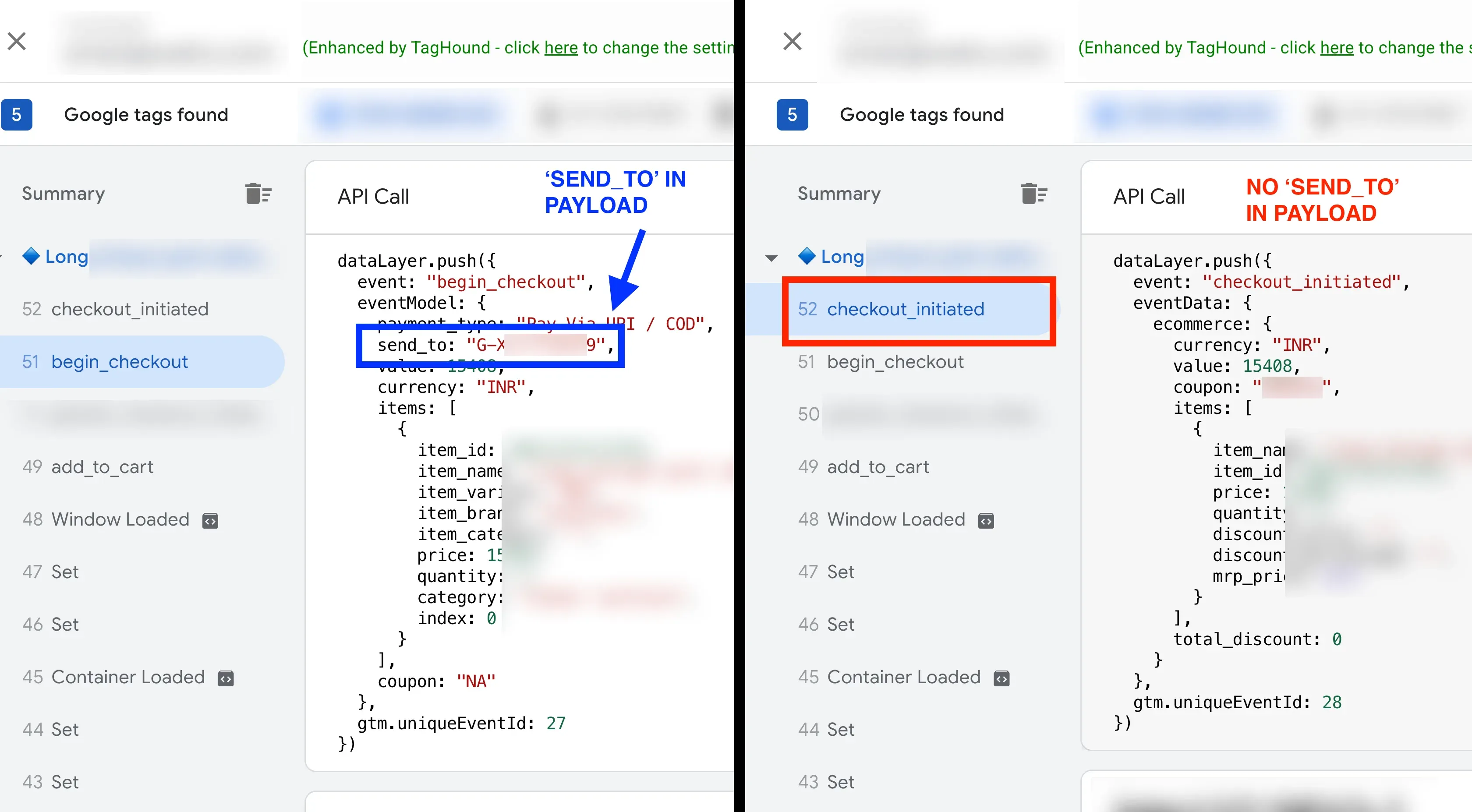

In the above example, left side image shows the event has send_to, therefore it is not used. Instead another event that does not contain send_to can be used to trigger the GTM tag.

Setting up the Tag

1. As first step, we will need a code to capture the information from the dataLayer and send it to CustomerLabs.
2. Refer CustomerLabs JavaScript API to generate the code for the event you want to track. The GTM tag should contain HTML code to,


   • Fetch the data from dataLayer object
   • Build the properties object consisting of customProperties (and productProperties for e-commerce events). Learn More about Building the Properties
   • Call _cl to trigger an event to CustomerLabs API. Learn more about tracking E-commerce Events and Form Submission Events
   • If dataLayer object has PII such as email, phone number, etc., then trigger an identify call to CustomerLabs along with the event. Learn More about Identify

3. After the GTM code is generated for the dataLayer object, Login to GTM Account and Click on Tags → New

4. Enter the tag name and click on Tag Configuration

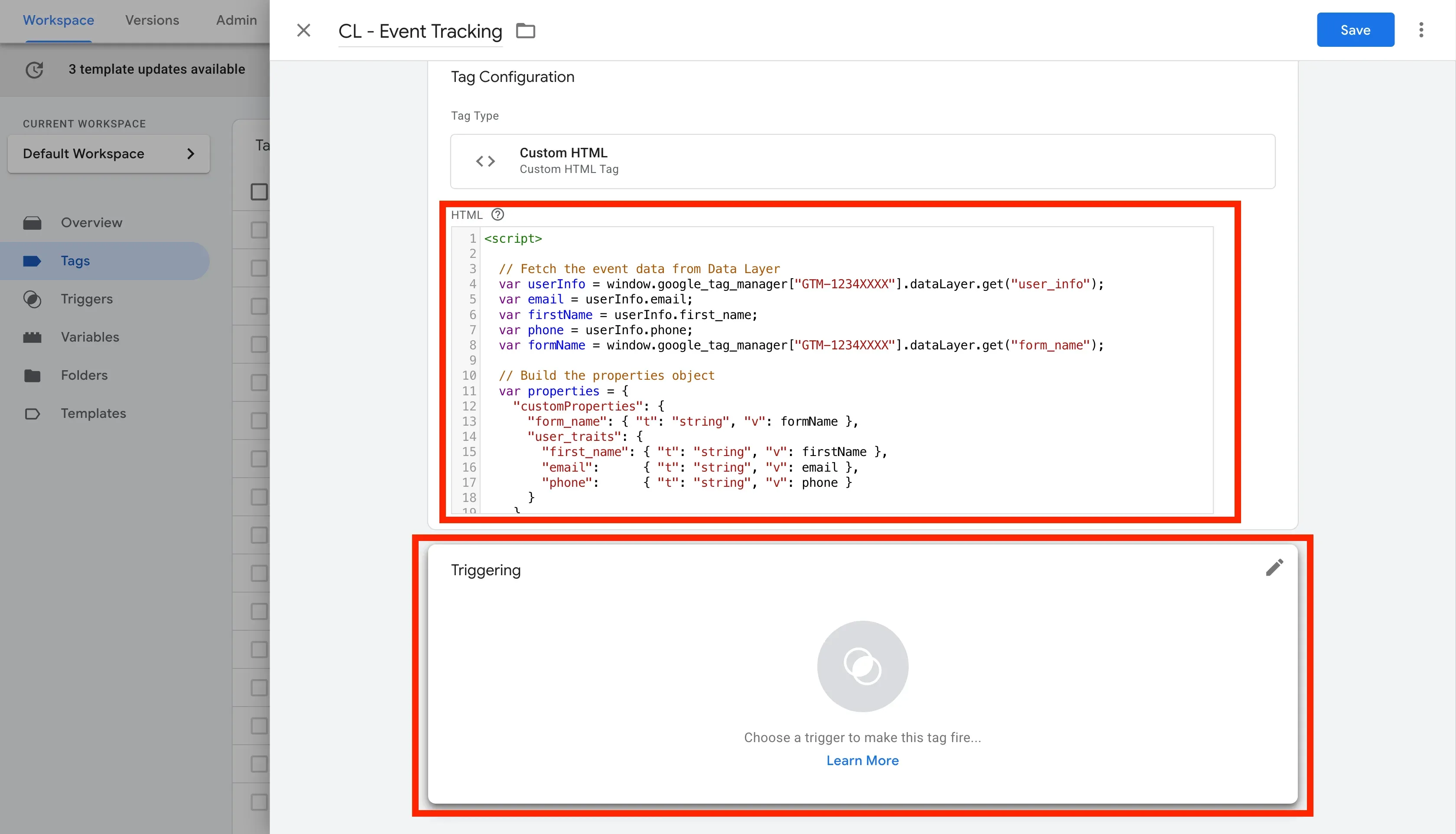

5. Select Custom HTML and paste the code in the HTML field

Setting up the Trigger

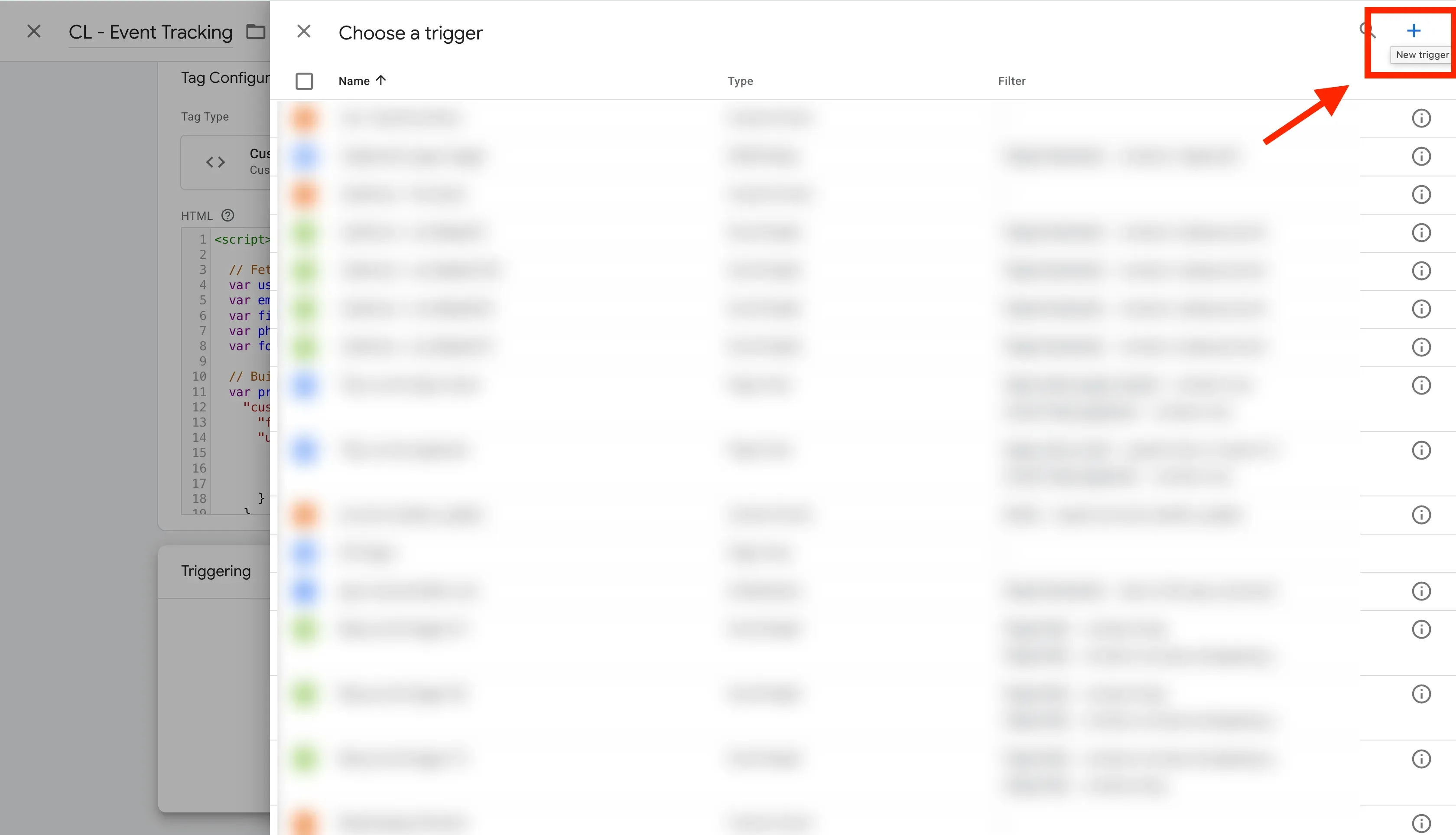

1. Click on Triggering and click on the + icon to create a new trigger.

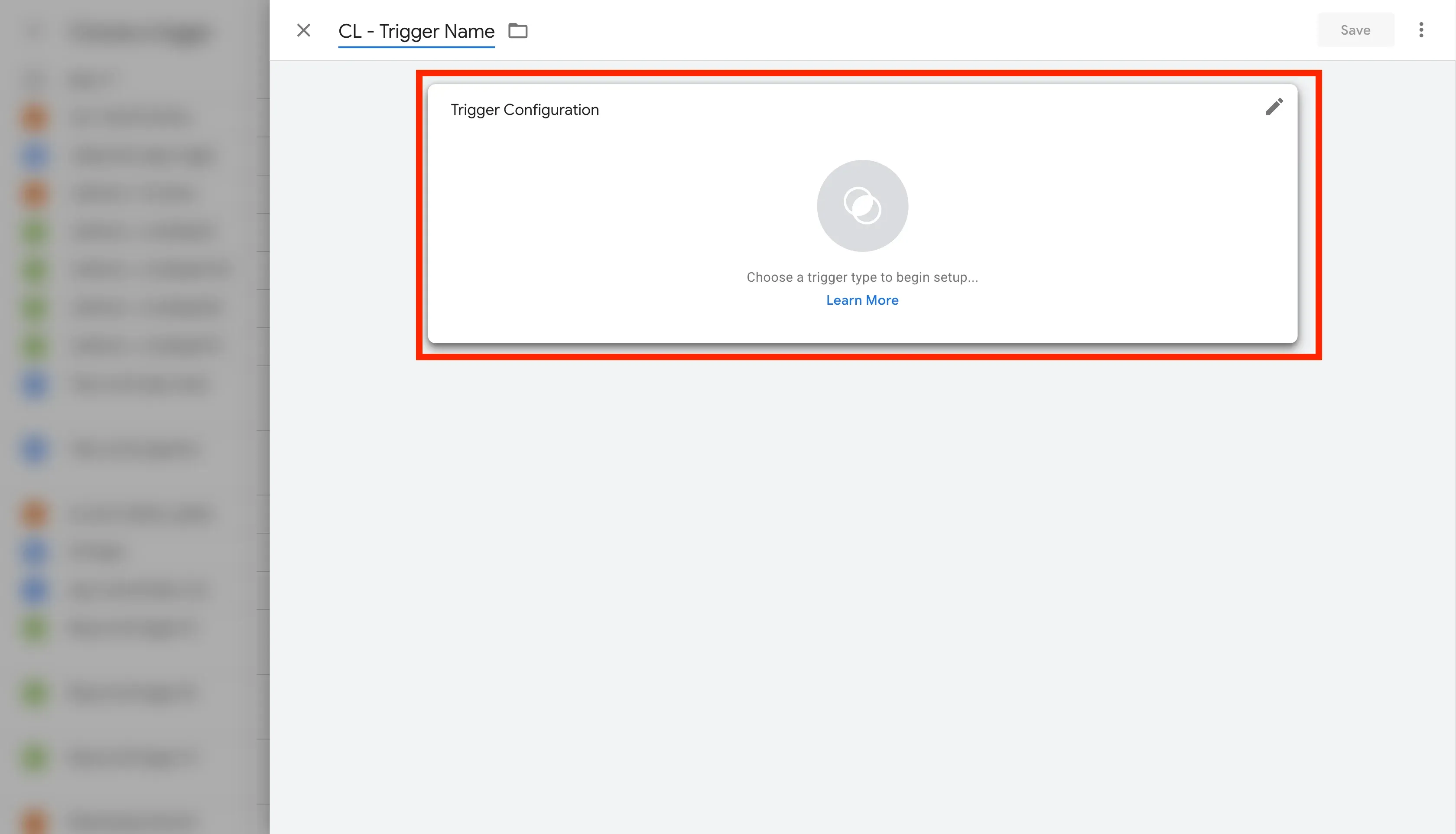

2. Enter the trigger name and click on Trigger Configuration.

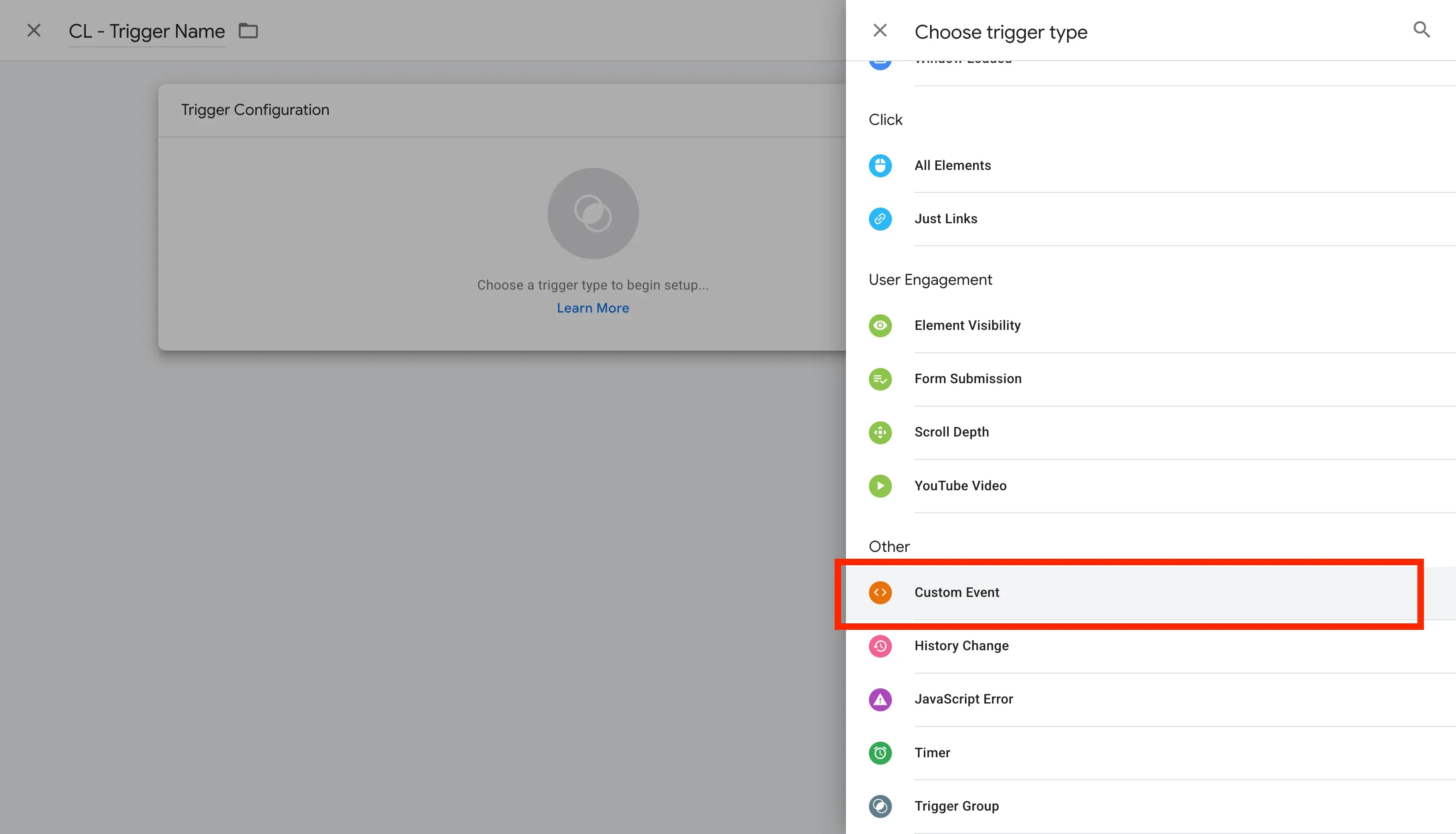

3. Select Custom Event.

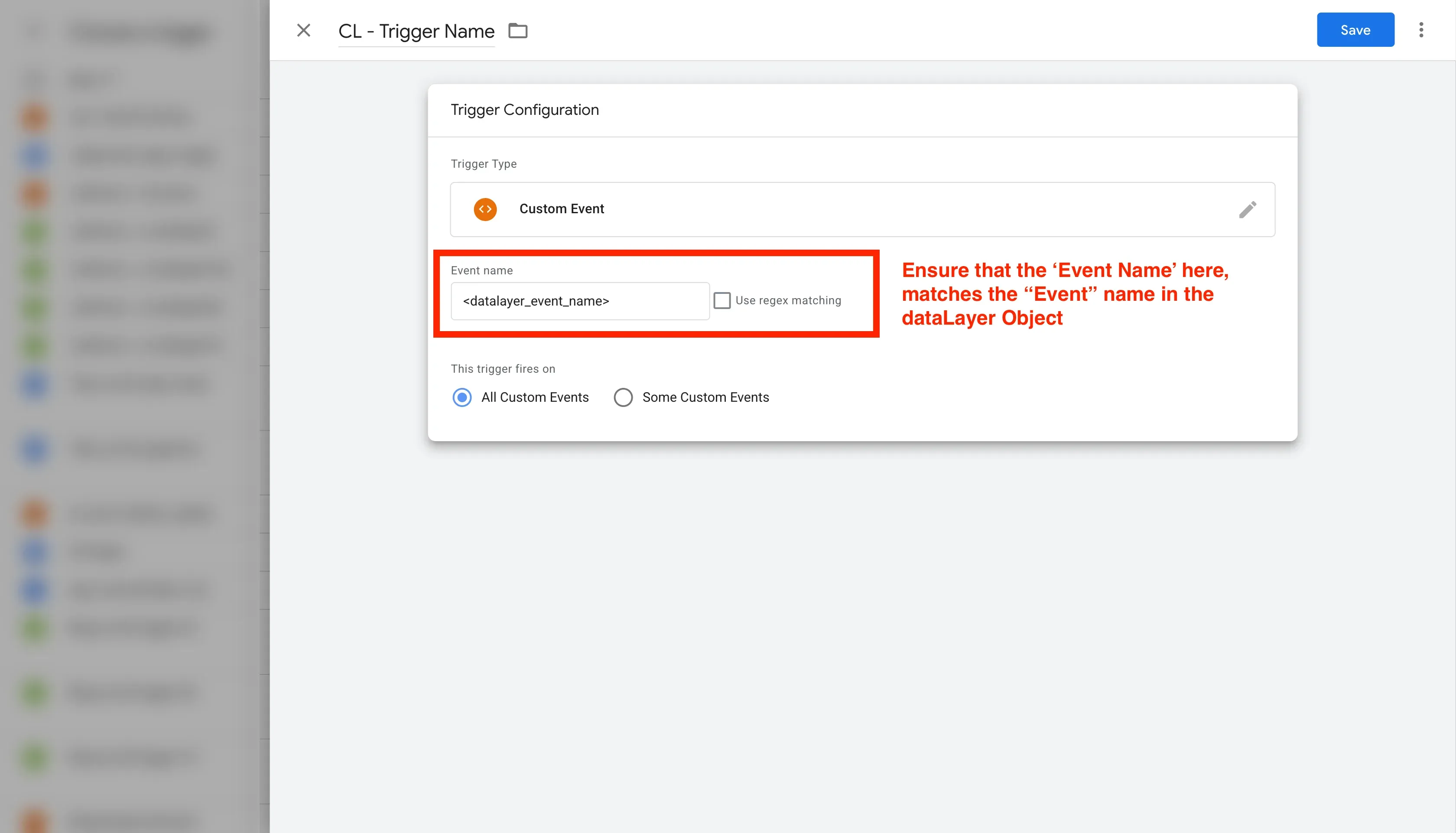

4. Enter the event name and click on Save.

Important

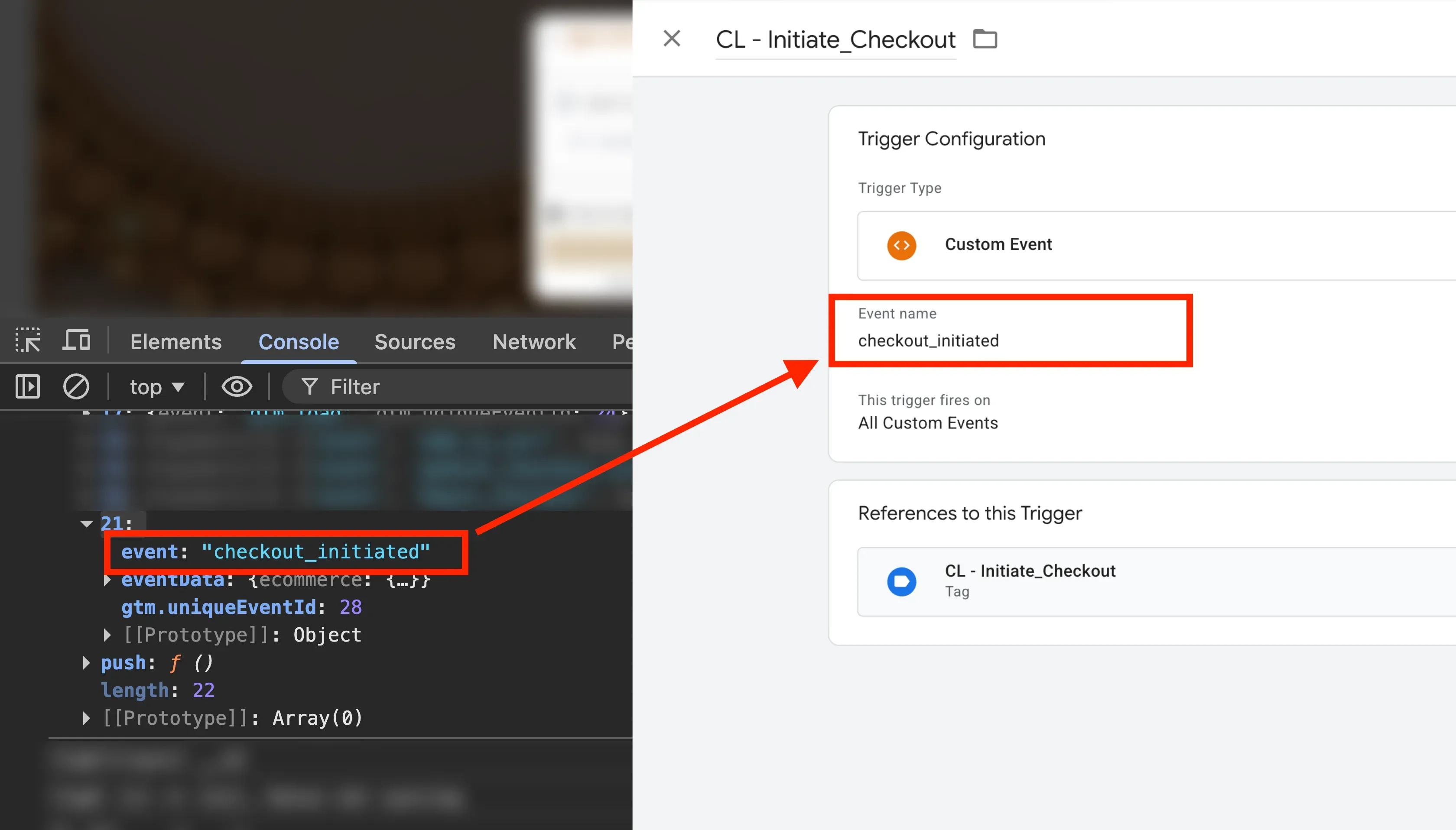

The custom event name should exactly match the event name in the data layer. Else the tag will not fire.

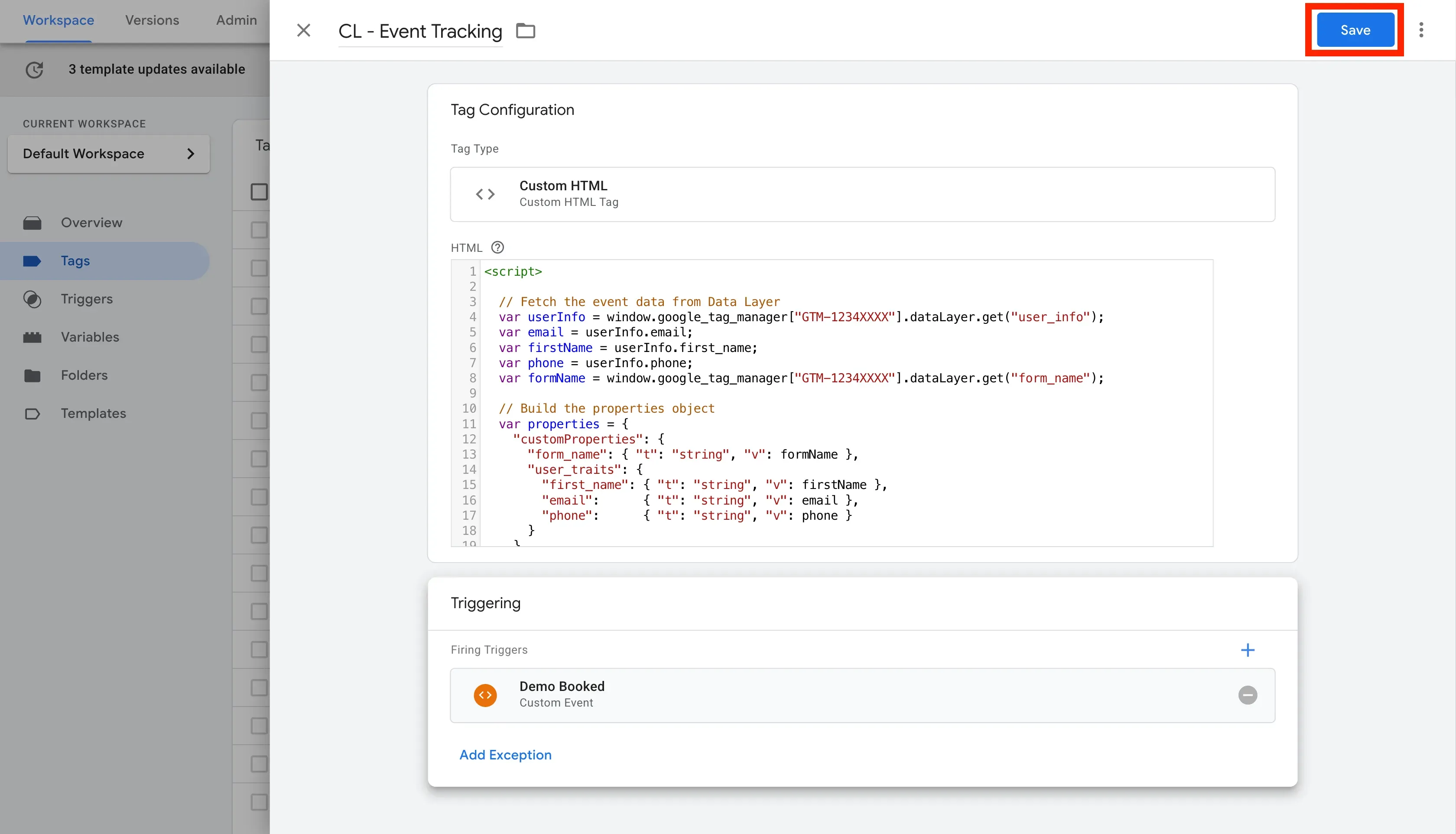

5. Click on Save in the Tag.

Examples

Example: Form Submission

Important

This is only an example code. The dataLayer object should not be embeded in your dataLayer or website using the GTM.

If your website pushes form data to the dataLayer when a user signs up, you can map that data to CustomerLabs.

Sample dataLayer Object:

Important: Implementation Notice

The dataLayer.push code provided below is a representative example for illustrative purposes. Do not copy and paste this snippet directly into your website or GTM.

The actual data layer implementation must be performed by your website developer in your website. This example is intended to demonstrate how to structure the data and how the GTM tag will subsequently capture and process that information.

JavaScript

dataLayer.push({
  'event': 'lead_form_submitted',
  'form_name': 'Lead Generation Form',
  'user_info': {
    'first_name': 'John',
    'email': 'john.doe@example.com',
    'phone': '9876543210'
  }
});

The above object is pushed to the dataLayer when a user submits a form on your website.

Tag for Sample Form Submission Event

As first step, we will need a code to capture the information from the dataLayer and send it to CustomerLabs.

Refer CustomerLabs JavaScript API to generate the code for the event you want to track. The GTM tag should contain HTML code to,

• Fetch the data from dataLayer object
• Build the properties object consisting of customProperties (and productProperties for e-commerce events).
• Call _cl to trigger an event to CustomerLabs API.
• If dataLayer object has PII such as email, phone number, etc., then trigger an identify call to CustomerLabs along with the event.

Tip

Learn More about Building the Properties

Learn More about Identify

Learn more about tracking E-commerce Events and Form Submission Events

Here is the GTM code for above sample dataLayer object:

HTML

<script>

  // Fetch the event data from Data Layer
  var userInfo = window.google_tag_manager["GTM-1234XXXX"].dataLayer.get("user_info");
  var email = userInfo.email;
  var firstName = userInfo.first_name;
  var phone = userInfo.phone;
  var formName = window.google_tag_manager["GTM-1234XXXX"].dataLayer.get("form_name");

  // Build the properties object
  var properties = {
    "customProperties": {
      "form_name": { "t": "string", "v": formName },
      "user_traits": {
        "first_name": { "t": "string", "v": firstName },
        "email":      { "t": "string", "v": email },
        "phone":      { "t": "string", "v": phone }
      }
    }
  };

  // Conditional Identify by email or phone
  if (email) {
    properties["customProperties"]["identify_by_email"] = {
      "t": "string",
      "v": email,
      "ib": true
    };
    if (phone && phone !== "") {
      properties["customProperties"]["external_ids"] = {
        "t": "Object",
        "v": {
          "identify_by_phone": {
            "t": "string",
            "v": phone
          }
        }
      }
    }
    else if (phone && phone !== "") {
      properties["customProperties"]["identify_by_phone"] = {
        "t": "string",
        "v": phone,
        "ib": true
      }
    }
  }

  // Trigger the identify call
  if (email || phone) {
    _cl.identify(customProperties);
  }

  // Trigger the event
  _cl.trackClick("Lead Form Submitted", properties);

</script>

Tip

See the full reference → Tracking Form Submissions

Login to GTM Account and Click on Tags → New. Choose Custom HTML and paste the code in the HTML field

Trigger Setup

1. Click on Triggering and click on the + icon to create a new trigger.
2. Enter the trigger name and click on Trigger Configuration.
3. Select Custom Event.
4. The event name should match the event name in the data layer. Here, the event name is lead_form_submitted.
5. Save the Tag.

---

Example: Purchase Event

Important

This is only an example code. The dataLayer object should not be embeded in your dataLayer or website using the GTM.

For E-Commerce tracking, you can capture detailed product information from the dataLayer.

Sample dataLayer Payload:

Important: Implementation Notice

The dataLayer.push code provided below is a representative example for illustrative purposes. Do not copy and paste this snippet directly into your website or GTM.

The actual data layer implementation must be performed by your website developer in your website. This example is intended to demonstrate how to structure the data and how the GTM tag will subsequently capture and process that information.

JavaScript

dataLayer.push({
  'event': 'order-placed',
  'transaction_id': 'ORD12345',
  'total_value': 150.00,
  'currency': 'USD',
  'items': [
    {
      'item_name': 'Blue T-Shirt',
      'item_id': 'TSH-001',
      'price': 50.00,
      'quantity': 2
    },
    {
      'item_name': 'Red Cap',
      'item_id': 'CAP-002',
      'price': 50.00,
      'quantity': 1
    }
  ],
  'user_info': {
    'first_name': 'John',
    'email': 'john.doe@example.com',
    'phone': '9876543210',
    'address': '123 Main St',
    'city': 'Anytown',
    'state': 'CA',
    'postal_code': '12345',
    'country': 'USA'
  }
});

The above object is pushed to the dataLayer when a user makes a purchase on your website.

Tag for Sample Purchase Event

As first step, we will need a code to capture the information from the dataLayer and send it to CustomerLabs.

Refer CustomerLabs JavaScript API to generate the code for the event you want to track. The GTM tag should contain HTML code to,

• Fetch the data from dataLayer object
• Build the properties object consisting of customProperties (and productProperties for e-commerce events).
• Call _cl to trigger an event to CustomerLabs API.
• If dataLayer object has PII such as email, phone number, etc., then trigger an identify call to CustomerLabs along with the event.

Tip

Learn More about Building the Properties

Learn More about Identify

Learn more about tracking E-commerce Events and Form Submission Events

Here is the GTM code for above sample dataLayer object:

HTML

<script>

  /* ===================================
     Function to build productProperties
     ==================================== */
  function productsConversion(productsArr) {
    var products = [];

    for (var i = 0; i < productsArr.length; i++) {
      var productsStructure = {};

      for (var key in productsArr[i]) {
        switch (key) {

          case "item_name":
            productsStructure["product_name"] = {
              t: "string",
              v: productsArr[i][key]
            };
            break;

          case "item_id":
            productsStructure["product_id"] = {
              t: "string",
              v: String(productsArr[i][key])
            };
            break;

          case "price":
            productsStructure["product_price"] = {
              t: "number",
              v: productsArr[i][key]
            };
            break;

          case "quantity":
            productsStructure["product_quantity"] = {
              t: "number",
              v: productsArr[i][key]
            };
            break;

          default:
            if (productsArr[i][key] !== null &&
                productsArr[i][key] !== undefined &&
                typeof productsArr[i][key] !== "object") {

              var rawValue = productsArr[i][key];

              var isNumeric =
                  rawValue !== "" &&
                  !isNaN(rawValue);

              var type = isNumeric ? "number" : "string";

              productsStructure["product_" + key] = {
                  t: type,
                  v: rawValue
              };
            }
        }
      }

      products.push(productsStructure);
    }

    return products;
  }

  // Extract values from dataLayer
  var dl = window.google_tag_manager["GTM-1234XXXX"].dataLayer;

  /* =========================
     EXTRACT VALUES FIRST
  ========================== */

  var transactionId = dl.get("transaction_id");
  var totalValue = dl.get("total_value");
  var currency = dl.get("currency");
  var items = dl.get("items") || [];

  var userInfo = dl.get("user_info") || {};

  var email = userInfo.email;
  var phone = userInfo.phone;
  var firstName = userInfo.first_name;
  var address = userInfo.address;
  var city = userInfo.city;
  var state = userInfo.state;
  var postalCode = userInfo.postal_code;
  var country = userInfo.country;

  /* =========================
     TRACK PURCHASE
  ========================== */

  var properties = {};

  properties["customProperties"] = {
    "currency": {
      "t": "string",
      "v": currency
    },
    "content_type": {
      "t": "string",
      "v": "product_group"
    },
    "value": {
      "t": "number",
      "v": parseFloat(totalValue) || 0
    },
    "transaction_id": {
      "t": "string",
      "v": transactionId
    },
    "transaction_number": {
      "t": "string",
      "v": transactionId
    }
  };

  /* =========================
     IDENTIFY
  ========================== */

  properties["customProperties"]["user_traits"] = {
    "t": "Object",
    "v": {
      "first_name": {
        "t": "string",
        "v": firstName
      },
      "email": {
        "t": "string",
        "v": email
      },
      "phone": {
        "t": "string",
        "v": phone
      },
      "address": {
        "t": "string",
        "v": address
      },
      "city": {
        "t": "string",
        "v": city
      },
      "state": {
        "t": "string",
        "v": state
      },
      "zip": {
        "t": "string",
        "v": postalCode
      },
      "country": {
        "t": "string",
        "v": country
      }
    }
  };

  if (email && email !== "") {

    properties["customProperties"]["identify_by_email"] = {
      "t": "string",
      "v": email,
      "ib": true
    };

    if (phone && phone !== "") {
      properties["customProperties"]["external_ids"] = {
        "t": "Object",
        "v": {
          "identify_by_phone": {
            "t": "string",
            "v": phone
          }
        }
      };
    }

  } else if (phone && phone !== "") {

    properties["customProperties"]["identify_by_phone"] = {
      "t": "string",
      "v": phone,
      "ib": true
    };

  }

  // Building the productProperties
  properties["productProperties"] = productsConversion(items);

  // Tracking the purchase event
  _cl.trackClick("Purchased", properties);

  // Identifying the user
  if (email || phone) {
    _cl.identify(properties);
  }

</script>

Note

• This code extracts the items from the dataLayer and builds the productProperties object using the function productsConversion.
• The user info is stored under user_traits in customProperties object.
• The event related info is stored in the customProperties object.
• The identify_by_email and external_ids objects are used to identify the user (using email and phone).

Login to GTM Account and Click on Tags → New. Choose Custom HTML and paste the code in the HTML field

Trigger Setup for the above sample

1. Click on Triggering and click on the + icon to create a new trigger.
2. Enter the trigger name and click on Trigger Configuration.
3. Select Custom Event.
4. The event name should match the event name in the data layer. Here, the event name is order-placed.
5. Save the Tag.

---

Full Reference

For more advanced tracking capabilities, including group tracking and complex identify logic, refer to our detailed developer documentation:

• Javascript API Documentation
• Building the Properties Object
• Identify (Create / Update User)
• Tracking E-Commerce Events
• Tracking Form Submissions

---

Next Steps

• Verify the Installation using our Chrome Extension
• Connect other data sources
• Connect CustomerLabs with Ad Platforms
• Create your first Audience
